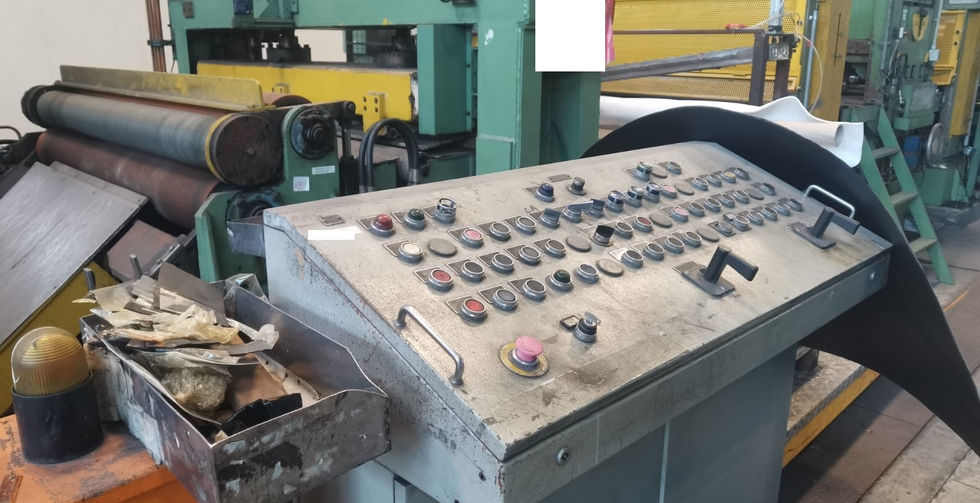

0.4-3 x 1500 mm Stainless Cut to Length Line

Description

Manufacturer.: Fimi

Built year: 1991

Revamped: 1998 & 2018

Material:Stainless Steel, CR and Galvanized Steel

Status: Stopped, on foundation

Strip width:1,500 mm

Thickness: 0.4 – 3.0 mm

Max coil weight: 20 tons

Length of sheet: max. 8,000 mm

Maximum Line Speed:   90 m/min

Tensile Strength: 650 N/mm² (60% elongation)

Max carousel load: 4 coils with total weight 50 tons

-Rotary shear

-Double stacker

-6HI Leveller / Straightener:

            19 levelling rolls, dia: 43 mm, 21 counter rolls, dia.: 38 mm

-2 pinch rolls

-PLC: Siemens S5
